FilaMan Wiki - English

Table of Contents

  1. Overview
  2. Installation
  3. Hardware Requirements
  4. Initial Setup
  5. Configuration
  6. Usage
  7. NFC Tags
  8. Bambu Lab Integration
  9. Spoolman Integration
  10. Octoprint Integration
  11. Manufacturer Tags
  12. Troubleshooting
  13. Support

Overview

FilaMan is a comprehensive filament management system for 3D printers based on ESP32 hardware. It provides weight measurement, NFC tag management, and seamless integration with Spoolman and Bambu Lab 3D printers.

Key Features

  • Precise weight measurement with HX711 load cell amplifier
  • NFC tag reading and writing for filament identification
  • OLED display for status information
  • WiFi connectivity with easy configuration
  • Web-based user interface with real-time updates
  • Spoolman integration for inventory management
  • Bambu Lab AMS control via MQTT
  • OpenSpool NFC format compatibility
  • Manufacturer tag support for automatic setup

System Requirements

  • ESP32 Development Board
  • Spoolman Instance (required for full functionality)
  • WiFi Network
  • Web Browser (Chrome/Firefox/Safari)

Installation

Easy Installation (Recommended)

  1. Open the FilaMan Web Installer

    • Use a Chrome-based browser

  2. Prepare ESP32

    • Connect ESP32 via USB to your computer
    • Click "Connect"

  3. Select Port

    • Choose the appropriate USB port
    • Confirm selection

  4. Start Installation

    • Click "Install FilaMan"
    • Wait for installation to complete

Manual Compilation

For advanced users with PlatformIO:

git clone https://github.com/ManuelW77/Filaman.git
cd FilaMan/esp32
pio lib install
pio run --target upload

Hardware Requirements

Required Components

Component Description Amazon Link (Affiliate)
ESP32 Development Board Any ESP32 variant Amazon
HX711 + Load Cell 5kg Load Cell Amplifier Amazon
OLED Display 0.96" I2C 128x64 SSD1306 Amazon
PN532 NFC Module V3 RFID Module Amazon
NFC Tags NTAG213/NTAG215 Amazon
TTP223 Touch Sensor Optional for tare function Amazon

Pin Configuration

Component ESP32 Pin Function
HX711 DOUT 16 Load cell data output
HX711 SCK 17 Load cell clock
OLED SDA 21 I2C data
OLED SCL 22 I2C clock
PN532 IRQ 32 Interrupt
PN532 RESET 33 Reset
PN532 SDA 21 I2C data (shared)
PN532 SCL 22 I2C clock (shared)
TTP223 I/O 25 Touch sensor (optional)

Important Notes

  • PN532 DIP switches must be set to I2C mode
  • 3V pin from ESP32 for touch sensor
  • Load cell wiring: E+ (red), E- (black), A- (white), A+ (green)

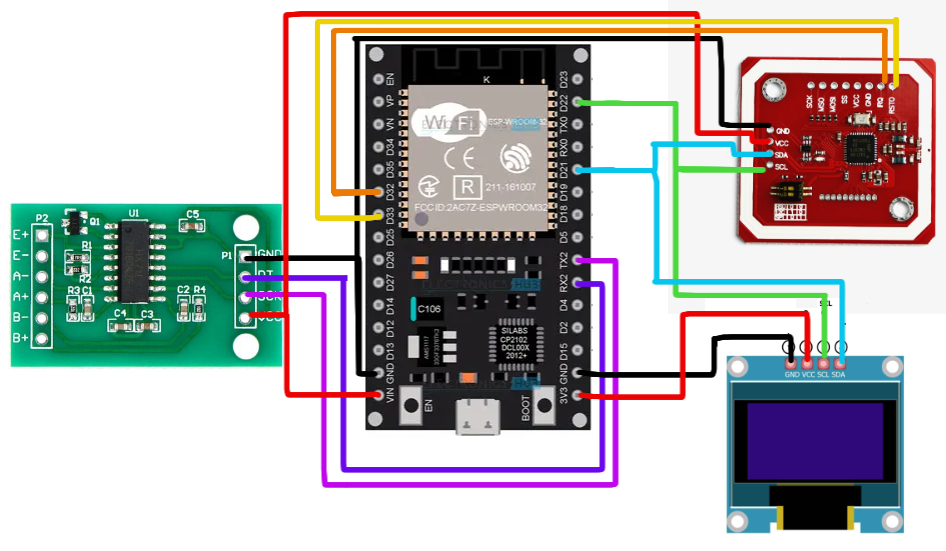

Wiring Diagram

Initial Setup

After Installation

  1. ESP32 Restart

    • System automatically creates a WiFi hotspot "FilaMan"

  2. WiFi Configuration

    • Connect to the "FilaMan" network
    • Open browser (automatic portal or http://192.168.4.1)
    • Configure your WiFi credentials

  3. First Access

    • After successful WiFi connection, access system at http://filaman.local
    • Alternative: Use IP address assigned by router

Spoolman Preparation

Important Note: Spoolman must run in debug mode:

# Uncomment in Spoolman's .env file:
SPOOLMAN_DEBUG_MODE=TRUE

This is required as Spoolman doesn't support CORS domain configuration yet.

Configuration

Scale Calibration

  1. Start Calibration

    • Go to "Scale" page
    • Prepare a 500g reference weight (e.g., water glass)

  2. Calibration Steps

    • Follow instructions on display
    • Place weight when prompted
    • Wait for calibration to complete

  3. Validation

    • Test accuracy with known weights
    • Use "Tare Scale" for zero adjustment if needed

Spoolman Connection

  1. Enter Spoolman URL

    • Go to "Spoolman/Bambu" page
    • Enter complete URL of your Spoolman instance
    • Format: http://spoolman-server:7912

  2. Test Connection

    • System automatically checks connection
    • Successful connection shown by green status

Bambu Lab Printer (Optional)

  1. Printer Settings

    • Open settings menu on your Bambu printer
    • Note the following data:
      • Printer IP address
      • Access Code
      • Serial Number

  2. FilaMan Configuration

    • Enter printer data on "Spoolman/Bambu" page
    • Enable "Auto Send to Bambu" for automatic AMS assignment

  3. Auto-Send Timeout

    • Configure waiting time for automatic spool detection
    • Recommended value: 10-30 seconds

Usage

Basic Operation

  1. Weigh Filament

    • Place spool on scale
    • Weight automatically displayed on screen and web interface

  2. Scan NFC Tag

    • Hold tag near PN532 module
    • Recognized tags display spool information
    • Weight automatically updated in Spoolman

  3. Status Monitoring

    • OLED Display shows current weight and connection status
    • Web Interface provides detailed information and control

Web Interface Navigation

  • Home: Main functions and current status
  • Scale: Scale calibration and settings
  • Spoolman/Bambu: System configuration
  • Statistics: Usage statistics (if enabled)

NFC Tags

Supported Tag Types

  • NTAG213: 144 bytes (basic functions)
  • NTAG215: 504 bytes (recommended)
  • NTAG216: 888 bytes (extended functions)

Writing Tags

  1. Prepare Spool in Spoolman

    • Create new spool in Spoolman
    • Ensure all required data is entered

  2. Start Tag Writing

    • Select spool from list
    • Click "Write Tag"
    • Display shows "Waiting for Tag"

  3. Place Tag

    • Position NFC tag on PN532 module
    • Wait for confirmation

  4. Success Message

    • Successful writing shows checkmark
    • Tag is now linked to Spoolman spool

Reading Tags

  1. Scan Tag

    • Place the spool with NFC tag on the scale over the NFC reader
    • If reading fails: Reposition spool slightly (not completely at the edge)
    • Spool information automatically loaded

  2. Automatic Updates

    • Current weight transferred to Spoolman
    • Spool automatically selected in web interface

Bambu Lab Integration

AMS (Automatic Material System)

  1. Display AMS Status

    • Web interface shows current state of all AMS slots
    • Loaded slots display filament information

  2. Manual Filament Assignment

    • Select spool from Spoolman list
    • Click corresponding AMS slot icon
    • Filament assigned to slot

  3. Automatic Assignment

    • After weighing with "Auto Send to Bambu" enabled
    • System waits for new spools in AMS
    • Calibrated filaments automatically assigned

Bambu Studio Integration

  1. Sync Filament Profiles

    • Calibrate filaments in Bambu Studio
    • Use Device → AMS → Pencil icon → Select

  2. Save Setting IDs

    • FilaMan automatically detects available setting IDs
    • Click "Save Settings to Spoolman"
    • Profiles used for future prints

Restore Connection

  • For connection issues, click red dot in menu bar
  • System automatically establishes new connection

Spoolman Integration

Automatic Functions

  1. Spool Synchronization

    • Automatic transfer of weight changes
    • Real-time updates of spool data

  2. Extra Fields

    • FilaMan automatically creates required custom fields
    • NFC tag UID stored as reference

  3. Filtering

    • "Show only spools without NFC tag" for easy tag assignment
    • Categorization by manufacturers and material types

Spoolman Octoprint Plugin

For Octoprint users, automatic spool assignment is available:

  1. Install Plugin

    https://github.com/ManuelW77/OctoPrint-Spoolman-Filaman/archive/refs/heads/master.zip

  2. Configure FilaMan

    • Enable "Send to Octo-Plugin"
    • Enter Octoprint URL and API key

  3. Automatic Assignment

    • After weighing, spool automatically activated in Octoprint
    • Currently supports only Tool0 (first nozzle)

Manufacturer Tags

Overview

Manufacturer tags allow filament producers to provide pre-configured NFC tags that automatically create all necessary entries in Spoolman.

Getting Started with Manufacturer Tags

  1. Scan Tag

    • Place spool with manufacturer tag on the scale over the NFC reader
    • If reading fails: Reposition spool slightly (not completely at the edge)
    • System automatically recognizes manufacturer format

  2. Automatic Creation

    • Brand created in Spoolman (if not present)
    • Filament type created with all specifications
    • Spool automatically registered

  3. Future Scans

    • After initial setup, tags use fast-path system
    • Immediate weight measurement without re-setup

Supported Manufacturers

  • RecyclingFabrik: First official partner
  • More manufacturers coming soon

Benefits

  • ✅ Zero manual setup
  • ✅ Perfect data accuracy
  • ✅ Instant integration
  • ✅ Future-proof

Troubleshooting

Common Issues

WiFi Connection

Issue: Cannot connect to FilaMan hotspot

Issue: Web interface not accessible

Scale

Issue: Inaccurate weight measurements

  • Solution: Repeat calibration
  • Tip: Use "Tare Scale" for zero adjustment

Issue: Load cell not responding

  • Solution: Check wiring (E+, E-, A+, A-)
  • Tip: Test with multimeter

NFC Tags

Issue: Tag not recognized

  • Solution: Check PN532 DIP switches (I2C mode)
  • Tip: Reposition spool slightly on scale (not completely at the edge)

Issue: Cannot write tag

  • Solution: Use NTAG215 for better compatibility
  • Tip: Ensure tag is not write-protected

Spoolman

Issue: Connection to Spoolman fails

  • Solution: Enable SPOOLMAN_DEBUG_MODE=TRUE
  • Tip: Check URL formatting

Issue: Spools not displayed

  • Solution: Ensure Spoolman is running
  • Tip: Check network firewall settings

Bambu Lab

Issue: Printer won't connect

  • Solution: Check access code and IP address
  • Tip: Ensure printer is in LAN mode

Issue: AMS status not displayed

  • Solution: Check MQTT connection
  • Note: Bambu may close API at any time

Debug Information

If you have problems, you can use these steps for diagnosis:

Serial Monitor (for developers)

  • Connect the ESP32 via USB to your computer
  • Open a serial monitor (e.g., Arduino IDE) with 115200 baud
  • You will see detailed log messages from the system

Browser Console

  • Open the FilaMan web interface
  • Press F12 to open developer tools
  • Check the console for error messages

Maintenance and Updates

Firmware Update

  1. Via Web Interface: Access http://filaman.local/upgrade.html
  2. Select firmware file (.bin format)
  3. Upload - System restarts automatically
  4. Configuration preserved - Settings remain intact

System Reset

For persistent issues:

  1. Disconnect ESP32 from power
  2. Wait 10 seconds
  3. Reconnect
  4. Wait 30 seconds for complete startup

Support and Information

Manufacturer: Your Company Name Maintainer: Manuel W.

Scale Technology

Weight Stabilization

The system uses multiple filters for precise measurements:

// Moving Average Filter with 8 values
#define MOVING_AVERAGE_SIZE 8
// Low-Pass Filter for smoothing
#define LOW_PASS_ALPHA 0.3f
// Thresholds for updates
#define DISPLAY_THRESHOLD 0.3f    // Display update
#define API_THRESHOLD 1.5f        // API actions

Calibration Algorithm

  1. System Pause: All tasks are temporarily paused
  2. Zero Setting: Tare scale without weight
  3. Reference Measurement: 500g weight for 10 measurements
  4. Calculation: newValue = rawValue / SCALE_LEVEL_WEIGHT
  5. NVS Storage: Permanent value with verification
  6. Filter Reset: New baseline for stabilization

Auto-Tare Logic

// Conditions for Auto-Tare
if (autoTare && (weight > 2 && weight < 7) || weight < -2) {
    scale_tare_counter++;
    if (scale_tare_counter >= 5) {
        // Automatic zero setting
        scale.tare();
        resetWeightFilter();
    }
}

NFC Technology

PN532 Communication

  • Interface: I2C at 400kHz
  • IRQ Pin: Interrupt-based tag detection
  • Reset Handling: Automatic recovery from communication errors
  • DIP Switches: Must be set to I2C mode (00)

NDEF Implementation

// FilaMan Spoolman Format (with sm_id)
{
  "sm_id": "123",
  "color": "#FF5733",
  "type": "PLA",
  "brand": "Example Brand"
}

Manufacturer Tag Schema

Compact JSON format for storage efficiency:

{
  "b": "RecyclingFabrik",           // brand
  "an": "FX1_PLA-S175-1000-RED",  // article number
  "t": "PLA",                      // type
  "c": "FF0000",                   // color (hex without #)
  "cn": "Red",                     // color name
  "et": "210",                     // extruder temp
  "bt": "60",                      // bed temp
  "di": "1.75",                    // diameter
  "de": "1.24",                    // density
  "sw": "240",                      // spool weight
  "u": "https://www.yoururl.com/search?q=" // URL used vor Brand Link and Filament Link
}

Display System

OLED Architecture (SSD1306)

  • Resolution: 128x64 pixels monochrome
  • Areas:
    • Status bar: 0-16 pixels (version, icons)
    • Main area: 17-64 pixels (weight, messages)
  • Update Interval: 1 second for status line

Icon System

Bitmap icons for various states:

// Status Icons (16x16 pixels)
- icon_success: Checkmark for successful operations
- icon_failed: X for errors
- icon_transfer: Arrow for data transmission
- icon_loading: Loading circle for ongoing operations

// Connection Icons with strikethrough indicator
- wifi_on/wifi_off: WLAN status
- bambu_on: Bambu Lab connection
- spoolman_on: Spoolman API status

API Integration

Spoolman REST API

FilaMan interacts with the following endpoints:

GET  /api/v1/spool/          # List spools
POST /api/v1/spool/          # Create new spool
PUT  /api/v1/spool/{id}/     # Update spool

GET  /api/v1/vendor/         # List vendors
POST /api/v1/vendor/         # Create new vendor

GET  /api/v1/filament/       # List filaments
POST /api/v1/filament/       # Create new filament

Request Handling

// Sequential API processing
enum spoolmanApiStateType {
    API_IDLE = 0,
    API_PROCESSING = 1,
    API_ERROR = 2
};

Prevents simultaneous API calls and deadlocks.

Weight Update Logic

// Conditions for Spoolman update
if (activeSpoolId != "" &&
    weigthCouterToApi > 3 &&    // 3+ stable measurements
    weightSend == 0 &&          // Not yet sent
    weight > 5 &&               // Minimum weight 5g
    spoolmanApiState == API_IDLE) {
    updateSpoolWeight(activeSpoolId, weight);
}

Bambu Lab MQTT

Connection Parameters

// SSL/TLS Configuration
#define BAMBU_PORT 8883
#define BAMBU_USERNAME "bblp"

// Topic Structure
String topic = "device/" + bambu_serial + "/report";
String request_topic = "device/" + bambu_serial + "/request";

AMS Data Structure

struct AMSData {
    String tray_id;
    String tray_type;
    String tray_color;
    String tray_material;
    String setting_id;
    String tray_info_idx;
    bool has_spool;
};

Auto-Send Mechanism

// After tag recognition
if (bambuCredentials.autosend_enable) {
    autoSetToBambuSpoolId = activeSpoolId.toInt();
    // Countdown starts automatically
    // Waits for new spool in AMS
}

WebSocket Communication

Message Types

// Client → Server
{
  "type": "writeNfcTag",
  "tagType": "spool",
  "payload": { /* JSON data */ }
}

{
  "type": "scale",
  "payload": "tare|calibrate|setAutoTare",
  "enabled": true
}

// Server → Client
{
  "type": "heartbeat",
  "freeHeap": 245,
  "bambu_connected": true,
  "spoolman_connected": true
}

{
  "type": "amsData",
  "data": [ /* AMS array */ ]
}

Connection Management

  • Auto-Reconnect: Client-side reconnection
  • Heartbeat: Every 30 seconds for connection monitoring
  • Cleanup: Automatic removal of dead connections

Watchdog and Error Handling

System Watchdog

// WDT Configuration
esp_task_wdt_init(10, true);  // 10s timeout, panic on overflow
esp_task_wdt_add(NULL);       // Add current task

Error Recovery

  • NFC Reset: Automatic PN532 restart on communication errors
  • MQTT Reconnect: Bambu Lab connection automatically restored
  • WiFi Monitoring: Connection check every 60 seconds

Support

Community

Documentation

Support Development

If you'd like to support the project:

Buy Me A Coffee

License

This project is released under the MIT License. See LICENSE for details.

Last Updated: August 2025
Version: 2.0
Maintainer: Manuel W.
