Added vertically aligned z map, more patterns, etc.
This commit is contained in:
Jason Coon
parent
9b6f17b81c
commit
623a03baa2
89
Map.h
89
Map.h
@ -1,6 +1,34 @@
|
||||
uint8_t coordsX[NUM_LEDS] = { 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 6, 6, 6, 6, 6, 6, 6, 6, 5, 5, 5, 5, 5, 5, 5, 5, 4, 4, 4, 4, 4, 4, 4, 4, 3, 3, 3, 3, 3, 3, 3, 3, 2, 2, 2, 2, 2, 2, 2, 2, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0 };
|
||||
uint8_t coordsY[NUM_LEDS] = { 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 3, 3, 3, 4, 4, 4, 4, 4, 4, 4, 4, 5, 5, 5, 5, 5, 5, 5, 5, 6, 6, 6, 6, 6, 6, 6, 6, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 6, 6, 6, 6, 6, 6, 6, 6, 5, 5, 5, 5, 5, 5, 5, 5, 4, 4, 4, 4, 4, 4, 4, 4, 3, 3, 3, 3, 3, 3, 3, 3, 2, 2, 2, 2, 2, 2, 2, 2, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 7, 7, 7, 7, 7, 7, 7, 7, 6, 6, 6, 6, 6, 6, 6, 6, 5, 5, 5, 5, 5, 5, 5, 5, 4, 4, 4, 4, 4, 4, 4, 4, 3, 3, 3, 3, 3, 3, 3, 3, 2, 2, 2, 2, 2, 2, 2, 2, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 3, 3, 3, 4, 4, 4, 4, 4, 4, 4, 4, 5, 5, 5, 5, 5, 5, 5, 5, 6, 6, 6, 6, 6, 6, 6, 6, 7, 7, 7, 7, 7, 7, 7, 7 };
|
||||
uint8_t coordsZ[NUM_LEDS] = { 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 3, 3, 3, 4, 4, 4, 4, 4, 4, 4, 4, 5, 5, 5, 5, 5, 5, 5, 5, 6, 6, 6, 6, 6, 6, 6, 6, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7 };
|
||||
const uint8_t coordsX[NUM_LEDS] = { 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 6, 6, 6, 6, 6, 6, 6, 6, 5, 5, 5, 5, 5, 5, 5, 5, 4, 4, 4, 4, 4, 4, 4, 4, 3, 3, 3, 3, 3, 3, 3, 3, 2, 2, 2, 2, 2, 2, 2, 2, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0 };
|
||||
const uint8_t coordsY[NUM_LEDS] = { 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 3, 3, 3, 4, 4, 4, 4, 4, 4, 4, 4, 5, 5, 5, 5, 5, 5, 5, 5, 6, 6, 6, 6, 6, 6, 6, 6, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 6, 6, 6, 6, 6, 6, 6, 6, 5, 5, 5, 5, 5, 5, 5, 5, 4, 4, 4, 4, 4, 4, 4, 4, 3, 3, 3, 3, 3, 3, 3, 3, 2, 2, 2, 2, 2, 2, 2, 2, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 7, 7, 7, 7, 7, 7, 7, 7, 6, 6, 6, 6, 6, 6, 6, 6, 5, 5, 5, 5, 5, 5, 5, 5, 4, 4, 4, 4, 4, 4, 4, 4, 3, 3, 3, 3, 3, 3, 3, 3, 2, 2, 2, 2, 2, 2, 2, 2, 1, 1, 1, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 3, 3, 3, 4, 4, 4, 4, 4, 4, 4, 4, 5, 5, 5, 5, 5, 5, 5, 5, 6, 6, 6, 6, 6, 6, 6, 6, 7, 7, 7, 7, 7, 7, 7, 7 };
|
||||
const uint8_t coordsZ[NUM_LEDS] = { 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 3, 3, 3, 4, 4, 4, 4, 4, 4, 4, 4, 5, 5, 5, 5, 5, 5, 5, 5, 6, 6, 6, 6, 6, 6, 6, 6, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 0, 1, 2, 3, 4, 5, 6, 7 };
|
||||
|
||||
const uint8_t coordsVZ[NUM_LEDS] = { 0, 1, 2, 3, 4, 5, 6, 7, 8, 7, 6, 5, 4, 3, 2, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 9, 8, 7, 6, 5, 4, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 11, 10, 9, 8, 7, 6, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 13, 12, 11, 10, 9, 8, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 15, 14, 13, 12, 11, 10, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 17, 16, 15, 14, 13, 12, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 19, 18, 17, 16, 15, 14, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 21, 20, 19, 18, 17, 16, 15, 15, 16, 17, 18, 19, 20, 21, 22, 21, 20, 19, 18, 17, 16, 15, 14, 13, 14, 15, 16, 17, 18, 19, 20, 19, 18, 17, 16, 15, 14, 13, 12, 11, 12, 13, 14, 15, 16, 17, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9, 10, 11, 12, 13, 14, 15, 16, 15, 14, 13, 12, 11, 10, 9, 8, 22, 21, 20, 19, 18, 17, 16, 15, 14, 15, 16, 17, 18, 19, 20, 21, 20, 19, 18, 17, 16, 15, 14, 13, 12, 13, 14, 15, 16, 17, 18, 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 11, 12, 13, 14, 15, 16, 17, 16, 15, 14, 13, 12, 11, 10, 9, 8, 9, 10, 11, 12, 13, 14, 15, 14, 13, 12, 11, 10, 9, 8, 7, 6, 7, 8, 9, 10, 11, 12, 13, 12, 11, 10, 9, 8, 7, 6, 5, 4, 5, 6, 7, 8, 9, 10, 11, 10, 9, 8, 7, 6, 5, 4, 3, 2, 3, 4, 5, 6, 7, 8, 9, 8, 7, 6, 5, 4, 3, 2, 1, 0, 1, 2, 3, 4, 5, 6, 7, 7, 6, 5, 4, 3, 2, 1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 8, 7, 6, 5, 4, 3, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 10, 9, 8, 7, 6, 5, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 12, 11, 10, 9, 8, 7, 6, 7, 8, 9, 10, 11, 12, 13, 14 };
|
||||
const uint8_t maxVZ = 22;
|
||||
const uint8_t verticalHues = 255 / maxVZ;
|
||||
|
||||
void paletteFall() {
|
||||
for (uint16_t i = 0; i < NUM_LEDS; i++) {
|
||||
leds[i] = ColorFromPalette(palettes[currentPaletteIndex], beat8(speed) + (coordsVZ[i] * verticalHues));
|
||||
}
|
||||
}
|
||||
|
||||
void paletteRise() {
|
||||
for (uint16_t i = 0; i < NUM_LEDS; i++) {
|
||||
leds[i] = ColorFromPalette(palettes[currentPaletteIndex], beat8(speed) - (coordsVZ[i] * verticalHues));
|
||||
}
|
||||
}
|
||||
|
||||
void gradientPaletteFall() {
|
||||
for (uint16_t i = 0; i < NUM_LEDS; i++) {
|
||||
leds[i] = ColorFromPalette(gCurrentPalette, beat8(speed) + (coordsVZ[i] * verticalHues));
|
||||
}
|
||||
}
|
||||
|
||||
void gradientPaletteRise() {
|
||||
for (uint16_t i = 0; i < NUM_LEDS; i++) {
|
||||
leds[i] = ColorFromPalette(gCurrentPalette, beat8(speed) - (coordsVZ[i] * verticalHues));
|
||||
}
|
||||
}
|
||||
|
||||
void cubeXGradientPalette() {
|
||||
uint8_t hues = 8;
|
||||
@ -65,15 +93,66 @@ void cubeYZGradientPalette() {
|
||||
}
|
||||
}
|
||||
|
||||
void cubeXYZGradientPalette() {
|
||||
void cubeXPalette() {
|
||||
uint8_t hues = 8;
|
||||
|
||||
for (uint16_t i = 0; i < NUM_LEDS; i++) {
|
||||
uint8_t x = coordsX[i];
|
||||
|
||||
leds[i] = ColorFromPalette(palettes[currentPaletteIndex], beat8(speed) - (x * hues));
|
||||
}
|
||||
}
|
||||
|
||||
void cubeYPalette() {
|
||||
uint8_t hues = 8;
|
||||
|
||||
for (uint16_t i = 0; i < NUM_LEDS; i++) {
|
||||
uint8_t y = coordsY[i];
|
||||
|
||||
leds[i] = ColorFromPalette(palettes[currentPaletteIndex], beat8(speed) - (y * hues));
|
||||
}
|
||||
}
|
||||
|
||||
void cubeZPalette() {
|
||||
uint8_t hues = 8;
|
||||
|
||||
for (uint16_t i = 0; i < NUM_LEDS; i++) {
|
||||
uint8_t z = coordsZ[i];
|
||||
|
||||
leds[i] = ColorFromPalette(palettes[currentPaletteIndex], beat8(speed) - (z * hues));
|
||||
}
|
||||
}
|
||||
|
||||
void cubeXYPalette() {
|
||||
uint8_t hues = 8;
|
||||
|
||||
for (uint16_t i = 0; i < NUM_LEDS; i++) {
|
||||
uint8_t x = coordsX[i];
|
||||
uint8_t y = coordsY[i];
|
||||
|
||||
leds[i] = ColorFromPalette(palettes[currentPaletteIndex], beat8(speed) - ((x + y) * hues));
|
||||
}
|
||||
}
|
||||
|
||||
void cubeXZPalette() {
|
||||
uint8_t hues = 8;
|
||||
|
||||
for (uint16_t i = 0; i < NUM_LEDS; i++) {
|
||||
uint8_t x = coordsX[i];
|
||||
uint8_t z = coordsZ[i];
|
||||
|
||||
leds[i] = ColorFromPalette(gCurrentPalette, beat8(speed) - ((x + y + z) * hues));
|
||||
leds[i] = ColorFromPalette(palettes[currentPaletteIndex], beat8(speed) - ((x + z) * hues));
|
||||
}
|
||||
}
|
||||
|
||||
void cubeYZPalette() {
|
||||
uint8_t hues = 8;
|
||||
|
||||
for (uint16_t i = 0; i < NUM_LEDS; i++) {
|
||||
uint8_t y = coordsY[i];
|
||||
uint8_t z = coordsZ[i];
|
||||
|
||||
leds[i] = ColorFromPalette(palettes[currentPaletteIndex], beat8(speed) - ((y + z) * hues));
|
||||
}
|
||||
}
|
||||
|
||||
|
||||
18
Noise.h
18
Noise.h
@ -110,18 +110,18 @@ void drawNoise3d(CRGBPalette16 palette, uint8_t hueReduce = 0)
|
||||
}
|
||||
|
||||
void rainbowNoise3d() {
|
||||
noisespeedx = 0;
|
||||
noisespeedy = 0;
|
||||
noisespeedz = -1;
|
||||
noisespeedx = -1;
|
||||
noisespeedy = -1;
|
||||
noisespeedz = 0;
|
||||
noisescale = 24;
|
||||
colorLoop = 0;
|
||||
drawNoise3d(RainbowColors_p);
|
||||
}
|
||||
|
||||
void rainbowStripeNoise3d() {
|
||||
noisespeedx = 0;
|
||||
noisespeedy = 0;
|
||||
noisespeedz = -2;
|
||||
noisespeedx = -1;
|
||||
noisespeedy = -1;
|
||||
noisespeedz = -1;
|
||||
noisescale = 24;
|
||||
colorLoop = 0;
|
||||
drawNoise3d(RainbowStripeColors_p);
|
||||
@ -164,9 +164,9 @@ void fireNoise3d() {
|
||||
}
|
||||
|
||||
void fireNoise23d() {
|
||||
noisespeedx = 3;
|
||||
noisespeedy = 3;
|
||||
noisespeedz = 3;
|
||||
noisespeedx = -3;
|
||||
noisespeedy = -3;
|
||||
noisespeedz = -3;
|
||||
noisescale = 32;
|
||||
colorLoop = 0;
|
||||
drawNoise3d(HeatColors_p);
|
||||
|
||||

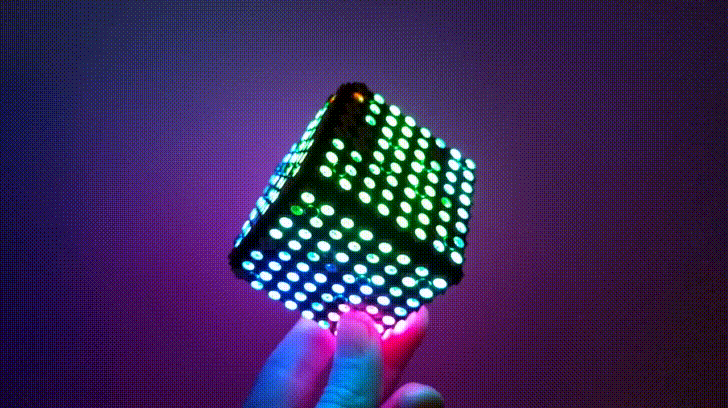

@ -3,7 +3,7 @@ ULTiM8x8 Cube + FastLED + ESP8266 Web Server
|
||||
|
||||
Control an RGB LED cube with an ESP8266 via a web browser.
|
||||
|
||||
[](https://i.imgur.com/SCHDFGx.gifv)
|
||||
[](https://i.imgur.com/SCHDFGx.gifv)
|
||||
|
||||
Hardware
|
||||
--------
|
||||
|
||||
BIN
Normal file
BIN
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 27 MiB |
@ -33,7 +33,6 @@ extern "C" {
|
||||
#include <FS.h>
|
||||
#include <EEPROM.h>
|
||||
//#include <IRremoteESP8266.h>
|
||||
#include "GradientPalettes.h"
|
||||
|
||||
#define ARRAY_SIZE(A) (sizeof(A) / sizeof((A)[0]))
|
||||
|
||||
@ -114,6 +113,38 @@ unsigned long autoPlayTimeout = 0;
|
||||
|
||||
uint8_t currentPaletteIndex = 0;
|
||||
|
||||
typedef struct {
|
||||
CRGBPalette16 palette;
|
||||
String name;
|
||||
} PaletteAndName;
|
||||
typedef PaletteAndName PaletteAndNameList[];
|
||||
|
||||
const CRGBPalette16 palettes[] = {
|
||||
RainbowColors_p,
|
||||
RainbowStripeColors_p,
|
||||
CloudColors_p,
|
||||
LavaColors_p,
|
||||
OceanColors_p,
|
||||
ForestColors_p,
|
||||
PartyColors_p,
|
||||
HeatColors_p
|
||||
};
|
||||
|
||||
const uint8_t paletteCount = ARRAY_SIZE(palettes);
|
||||
|
||||
const String paletteNames[paletteCount] = {
|
||||
"Rainbow",
|
||||
"Rainbow Stripe",
|
||||
"Cloud",
|
||||
"Lava",
|
||||
"Ocean",
|
||||
"Forest",
|
||||
"Party",
|
||||
"Heat",
|
||||
};
|
||||
|
||||
#include "GradientPalettes.h"
|
||||
|
||||
uint8_t gHue = 0; // rotating "base color" used by many of the patterns
|
||||
|
||||
CRGB solidColor = CRGB::Blue;
|
||||
@ -145,14 +176,34 @@ PatternAndNameList patterns = {
|
||||
{ pride, "Pride" },
|
||||
{ colorWaves, "Color Waves" },
|
||||
|
||||
{ cubeXGradientPalette, "X Gradient Palette" },
|
||||
{ cubeYGradientPalette, "Y Gradient Palette" },
|
||||
{ cubeZGradientPalette, "Z Gradient Palette" },
|
||||
{ rainbowWavesFall, "Rainbow Waves Fall" },
|
||||
{ rainbowWavesRise, "Rainbow Waves Rise" },
|
||||
|
||||
{ cubeXYGradientPalette, "XY Gradient Palette" },
|
||||
{ cubeXZGradientPalette, "XZ Gradient Palette" },
|
||||
{ cubeYZGradientPalette, "YZ Gradient Palette" },
|
||||
{ cubeXYZGradientPalette, "XYZ Gradient Palette" },
|
||||
{ paletteFall, "Palette Fall" },
|
||||
{ paletteRise, "Palette Rise" },
|
||||
|
||||
{ gradientPaletteFall, "Gradient Palette Fall" },
|
||||
{ gradientPaletteRise, "Gradient Palette Rise" },
|
||||
|
||||
{ rainbowWavesX, "Rainbow Waves X" },
|
||||
{ rainbowWavesY, "Rainbow Waves Y" },
|
||||
{ rainbowWavesZ, "Rainbow Waves Z" },
|
||||
|
||||
{ cubeXGradientPalette, "Gradient Palette X" },
|
||||
{ cubeYGradientPalette, "Gradient Palette Y" },
|
||||
{ cubeZGradientPalette, "Gradient Palette Z" },
|
||||
|
||||
{ cubeXYGradientPalette, "Gradient Palette XY" },
|
||||
{ cubeXZGradientPalette, "Gradient Palette XZ" },
|
||||
{ cubeYZGradientPalette, "Gradient Palette YZ" },
|
||||
|
||||
{ cubeXPalette, "Palette X" },
|
||||
{ cubeYPalette, "Palette Y" },
|
||||
{ cubeZPalette, "Palette Z" },
|
||||
|
||||
{ cubeXYPalette, "Palette XY" },
|
||||
{ cubeXZPalette, "Palette XZ" },
|
||||
{ cubeYZPalette, "Palette YZ" },
|
||||
|
||||
// 3d noise patterns
|
||||
{ fireNoise3d, "Fire Noise" },
|
||||
@ -206,36 +257,6 @@ PatternAndNameList patterns = {
|
||||
|
||||
const uint8_t patternCount = ARRAY_SIZE(patterns);
|
||||
|
||||
typedef struct {
|
||||
CRGBPalette16 palette;
|
||||
String name;
|
||||
} PaletteAndName;
|
||||
typedef PaletteAndName PaletteAndNameList[];
|
||||
|
||||
const CRGBPalette16 palettes[] = {
|
||||
RainbowColors_p,
|
||||
RainbowStripeColors_p,
|
||||
CloudColors_p,
|
||||
LavaColors_p,
|
||||
OceanColors_p,
|
||||
ForestColors_p,
|
||||
PartyColors_p,
|
||||
HeatColors_p
|
||||
};
|
||||
|
||||
const uint8_t paletteCount = ARRAY_SIZE(palettes);
|
||||
|
||||
const String paletteNames[paletteCount] = {
|
||||
"Rainbow",
|
||||
"Rainbow Stripe",
|
||||
"Cloud",
|
||||
"Lava",
|
||||
"Ocean",
|
||||
"Forest",
|
||||
"Party",
|
||||
"Heat",
|
||||
};
|
||||
|
||||
#include "Fields.h"
|
||||
|
||||
void setup() {
|
||||
@ -1288,3 +1309,254 @@ void palettetest( CRGB* ledarray, uint16_t numleds, const CRGBPalette16& gCurren
|
||||
startindex--;
|
||||
fill_palette( ledarray, numleds, startindex, (256 / NUM_LEDS) + 1, gCurrentPalette, 255, LINEARBLEND);
|
||||
}
|
||||
|
||||
void rainbowWavesX()
|
||||
{
|
||||
static uint16_t sPseudotime = 0;
|
||||
static uint16_t sLastMillis = 0;
|
||||
static uint16_t sHue16 = 0;
|
||||
|
||||
uint8_t sat8 = beatsin88( 87, 220, 250);
|
||||
uint8_t brightdepth = beatsin88( 341, 96, 224);
|
||||
uint16_t brightnessthetainc16 = beatsin88( 203, (25 * 256), (40 * 256));
|
||||
uint8_t msmultiplier = beatsin88(147, 23, 60);
|
||||
|
||||
uint16_t hue16 = sHue16;//gHue * 256;
|
||||
uint16_t hueinc16 = beatsin88(113, 1, 3000);
|
||||
|
||||
uint16_t ms = millis();
|
||||
uint16_t deltams = ms - sLastMillis ;
|
||||
sLastMillis = ms;
|
||||
sPseudotime += deltams * msmultiplier;
|
||||
sHue16 += deltams * beatsin88( 400, 5, 9);
|
||||
uint16_t brightnesstheta16 = sPseudotime;
|
||||
|
||||
for ( uint8_t i = 0 ; i < 8; i++) {
|
||||
hue16 += hueinc16;
|
||||
uint8_t hue8 = hue16 / 256;
|
||||
|
||||
brightnesstheta16 += brightnessthetainc16;
|
||||
uint16_t b16 = sin16( brightnesstheta16 ) + 32768;
|
||||
|
||||
uint16_t bri16 = (uint32_t)((uint32_t)b16 * (uint32_t)b16) / 65536;
|
||||
uint8_t bri8 = (uint32_t)(((uint32_t)bri16) * brightdepth) / 65536;
|
||||
bri8 += (255 - brightdepth);
|
||||
|
||||
CRGB newcolor = CHSV( hue8, sat8, bri8);
|
||||
|
||||
for(uint16_t p = 0; p < NUM_LEDS; p++) {
|
||||
uint8_t x = coordsX[p];
|
||||
|
||||
if(x == i) {
|
||||
nblend(leds[p], newcolor, 64);
|
||||
}
|
||||
}
|
||||
}
|
||||
}
|
||||
|
||||
void rainbowWavesY()
|
||||
{
|
||||
static uint16_t sPseudotime = 0;
|
||||
static uint16_t sLastMillis = 0;
|
||||
static uint16_t sHue16 = 0;
|
||||
|
||||
uint8_t sat8 = beatsin88( 87, 220, 250);
|
||||
uint8_t brightdepth = beatsin88( 341, 96, 224);
|
||||
uint16_t brightnessthetainc16 = beatsin88( 203, (25 * 256), (40 * 256));
|
||||
uint8_t msmultiplier = beatsin88(147, 23, 60);
|
||||
|
||||
uint16_t hue16 = sHue16;//gHue * 256;
|
||||
uint16_t hueinc16 = beatsin88(113, 1, 3000);
|
||||
|
||||
uint16_t ms = millis();
|
||||
uint16_t deltams = ms - sLastMillis ;
|
||||
sLastMillis = ms;
|
||||
sPseudotime += deltams * msmultiplier;
|
||||
sHue16 += deltams * beatsin88( 400, 5, 9);
|
||||
uint16_t brightnesstheta16 = sPseudotime;
|
||||
|
||||
for ( uint8_t i = 0 ; i < 8; i++) {
|
||||
hue16 += hueinc16;
|
||||
uint8_t hue8 = hue16 / 256;
|
||||
|
||||
brightnesstheta16 += brightnessthetainc16;
|
||||
uint16_t b16 = sin16( brightnesstheta16 ) + 32768;
|
||||
|
||||
uint16_t bri16 = (uint32_t)((uint32_t)b16 * (uint32_t)b16) / 65536;
|
||||
uint8_t bri8 = (uint32_t)(((uint32_t)bri16) * brightdepth) / 65536;
|
||||
bri8 += (255 - brightdepth);
|
||||
|
||||
CRGB newcolor = CHSV( hue8, sat8, bri8);
|
||||
|
||||
for(uint16_t p = 0; p < NUM_LEDS; p++) {
|
||||
uint8_t y = coordsY[p];
|
||||
|
||||
if(y == i) {
|
||||
nblend(leds[p], newcolor, 64);
|
||||
}
|
||||
}
|
||||
}
|
||||
}
|
||||
|
||||
void rainbowWavesZ()
|
||||
{
|
||||
static uint16_t sPseudotime = 0;
|
||||
static uint16_t sLastMillis = 0;
|
||||
static uint16_t sHue16 = 0;
|
||||
|
||||
uint8_t sat8 = beatsin88( 87, 220, 250);
|
||||
uint8_t brightdepth = beatsin88( 341, 96, 224);
|
||||
uint16_t brightnessthetainc16 = beatsin88( 203, (25 * 256), (40 * 256));
|
||||
uint8_t msmultiplier = beatsin88(147, 23, 60);
|
||||
|
||||
uint16_t hue16 = sHue16;//gHue * 256;
|
||||
uint16_t hueinc16 = beatsin88(113, 1, 3000);
|
||||
|
||||
uint16_t ms = millis();
|
||||
uint16_t deltams = ms - sLastMillis ;
|
||||
sLastMillis = ms;
|
||||
sPseudotime += deltams * msmultiplier;
|
||||
sHue16 += deltams * beatsin88( 400, 5, 9);
|
||||
uint16_t brightnesstheta16 = sPseudotime;
|
||||
|
||||
for ( uint8_t i = 0 ; i < 8; i++) {
|
||||
hue16 += hueinc16;
|
||||
uint8_t hue8 = hue16 / 256;
|
||||
|
||||
brightnesstheta16 += brightnessthetainc16;
|
||||
uint16_t b16 = sin16( brightnesstheta16 ) + 32768;
|
||||
|
||||
uint16_t bri16 = (uint32_t)((uint32_t)b16 * (uint32_t)b16) / 65536;
|
||||
uint8_t bri8 = (uint32_t)(((uint32_t)bri16) * brightdepth) / 65536;
|
||||
bri8 += (255 - brightdepth);
|
||||
|
||||
CRGB newcolor = CHSV( hue8, sat8, bri8);
|
||||
|
||||
for(uint16_t p = 0; p < NUM_LEDS; p++) {
|
||||
uint8_t z = coordsZ[p];
|
||||
|
||||
if(z == i) {
|
||||
nblend(leds[p], newcolor, 64);
|
||||
}
|
||||
}
|
||||
}
|
||||
}
|
||||
|
||||
void rainbowWavesFall()
|
||||
{
|
||||
static uint16_t sPseudotime = 0;
|
||||
static uint16_t sLastMillis = 0;
|
||||
static uint16_t sHue16 = 0;
|
||||
|
||||
uint8_t sat8 = beatsin88( 87, 220, 250);
|
||||
uint8_t brightdepth = beatsin88( 341, 96, 224);
|
||||
uint16_t brightnessthetainc16 = beatsin88( 203, (25 * 256), (40 * 256));
|
||||
uint8_t msmultiplier = beatsin88(147, 23, 60);
|
||||
|
||||
uint16_t hue16 = sHue16;//gHue * 256;
|
||||
uint16_t hueinc16 = beatsin88(113, 1, 3000);
|
||||
|
||||
uint16_t ms = millis();
|
||||
uint16_t deltams = ms - sLastMillis ;
|
||||
sLastMillis = ms;
|
||||
sPseudotime += deltams * msmultiplier;
|
||||
sHue16 += deltams * beatsin88( 400, 5, 9);
|
||||
uint16_t brightnesstheta16 = sPseudotime;
|
||||
|
||||
for ( uint8_t i = 0 ; i <= maxVZ; i++) {
|
||||
hue16 += hueinc16;
|
||||
uint8_t hue8 = hue16 / 256;
|
||||
|
||||
brightnesstheta16 += brightnessthetainc16;
|
||||
uint16_t b16 = sin16( brightnesstheta16 ) + 32768;
|
||||
|
||||
uint16_t bri16 = (uint32_t)((uint32_t)b16 * (uint32_t)b16) / 65536;
|
||||
uint8_t bri8 = (uint32_t)(((uint32_t)bri16) * brightdepth) / 65536;
|
||||
bri8 += (255 - brightdepth);
|
||||
|
||||
CRGB newcolor = CHSV( hue8, sat8, bri8);
|
||||
|
||||
for(uint16_t p = 0; p < NUM_LEDS; p++) {
|
||||
if(i == coordsVZ[p]) {
|
||||
nblend(leds[p], newcolor, 64);
|
||||
}
|
||||
}
|
||||
}
|
||||
}
|
||||
|
||||
void rainbowWavesRise()
|
||||
{
|
||||
static uint16_t sPseudotime = 0;
|
||||
static uint16_t sLastMillis = 0;
|
||||
static uint16_t sHue16 = 0;
|
||||
|
||||
uint8_t sat8 = beatsin88( 87, 220, 250);
|
||||
uint8_t brightdepth = beatsin88( 341, 96, 224);
|
||||
uint16_t brightnessthetainc16 = beatsin88( 203, (25 * 256), (40 * 256));
|
||||
uint8_t msmultiplier = beatsin88(147, 23, 60);
|
||||
|
||||
uint16_t hue16 = sHue16;//gHue * 256;
|
||||
uint16_t hueinc16 = beatsin88(113, 1, 3000);
|
||||
|
||||
uint16_t ms = millis();
|
||||
uint16_t deltams = ms - sLastMillis ;
|
||||
sLastMillis = ms;
|
||||
sPseudotime += deltams * msmultiplier;
|
||||
sHue16 += deltams * beatsin88( 400, 5, 9);
|
||||
uint16_t brightnesstheta16 = sPseudotime;
|
||||
|
||||
for ( uint8_t i = 0 ; i <= maxVZ; i++) {
|
||||
hue16 += hueinc16;
|
||||
uint8_t hue8 = hue16 / 256;
|
||||
|
||||
brightnesstheta16 += brightnessthetainc16;
|
||||
uint16_t b16 = sin16( brightnesstheta16 ) + 32768;
|
||||
|
||||
uint16_t bri16 = (uint32_t)((uint32_t)b16 * (uint32_t)b16) / 65536;
|
||||
uint8_t bri8 = (uint32_t)(((uint32_t)bri16) * brightdepth) / 65536;
|
||||
bri8 += (255 - brightdepth);
|
||||
|
||||
CRGB newcolor = CHSV( hue8, sat8, bri8);
|
||||
|
||||
for(uint16_t p = 0; p < NUM_LEDS; p++) {
|
||||
if(i == maxVZ - coordsVZ[p]) {
|
||||
nblend(leds[p], newcolor, 64);
|
||||
}
|
||||
}
|
||||
}
|
||||
}
|
||||
|
||||
void paletteRainXYZ() {
|
||||
const uint8_t dropCount = 1;
|
||||
const uint8_t maxDim = 7;
|
||||
|
||||
static uint8_t rainX[dropCount];
|
||||
static uint8_t rainY[dropCount];
|
||||
static uint8_t rainZ[dropCount];
|
||||
|
||||
dimAll(220);
|
||||
|
||||
for(uint8_t i = 0; i < dropCount; i++) {
|
||||
uint8_t x = rainX[i];
|
||||
uint8_t y = rainY[i];
|
||||
uint8_t z = rainZ[i];
|
||||
|
||||
if(x == 0) x = maxDim;
|
||||
if(y == 0) y = maxDim;
|
||||
if(z == 0) z = random8(0, maxDim + 1);
|
||||
|
||||
for(uint16_t p = 0; p < NUM_LEDS; p++) {
|
||||
if(coordsX[p] == x && coordsY[p] == y && coordsZ[p] == z) {
|
||||
CRGB newcolor = ColorFromPalette(palettes[currentPaletteIndex], i);
|
||||
nblend(leds[p], newcolor, 64);
|
||||
}
|
||||
}
|
||||
|
||||
EVERY_N_MILLIS(30) {
|
||||
rainX[i] = x - 1;
|
||||
rainY[i] = y;
|
||||
rainZ[i] = z;
|
||||
}
|
||||
}
|
||||
}
|
||||
|
||||
|
||||
BIN
Normal file
BIN
Normal file
Binary file not shown.
|
After Width: | Height: | Size: 104 KiB |
Loading…
Reference in New Issue
Block a user
